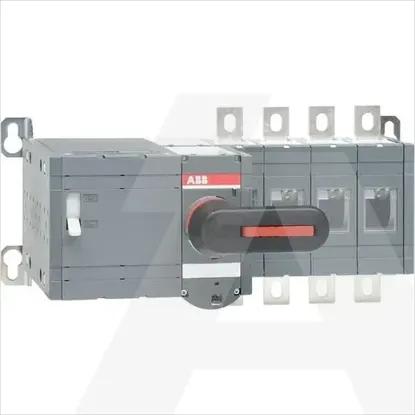

1SCA115336R1001 | OTM400E4M230C
Code: 1525341
In stock 1 pcs
Zagreb1 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
Possible delivery within 24h
WSP*
951,16 €
Neto951,16 €
RP1.188,95 €
DetailsWarehouse statesTechnical specificationsFrom same serie
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
Technical specifications
Number of poles
4
Type of control element
Long turning handle
Rated permanent current Iu
400A
Motor drive integrated
No
Type of electrical connection of main circuit
Bolt connection
Device construction
Built-in device fixed built-in technique
Motor drive optional
No
Rated operation power at AC-3, 400 V
-kW
Degree of protection (NEMA)
1
Degree of protection (IP), front side
Other
Suitable for floor mounting
No
Suitable for intermediate mounting
No
Suitable for distribution board installation
Yes
Conditioned rated short-circuit current Iq
-kA
Rated operating voltage
1000 - 1000V
Rated short-time withstand current lcw
15kA
Max. rated operation voltage Ue AC
1000V
Colour control element
Black
Suitable for front mounting 4-hole
Yes
Rated permanent current at AC-21, 400 V
400A
Version as reversing switch
No
Voltage release optional
No
Interlockable
Yes
Version as maintenance-/service switch
No
Switching power at 400 V
220kW
Number of switches
-
Rated permanent current at AC-23, 400 V
400A
Version as main switch
Yes
Suitable for front mounting centre
No
Version as emergency stop installation
No
Version as safety switch
No
Rated operation power at AC-23, 400 V
220kW
Depth
211.5mm
Height
185mm
Number of auxiliary contacts as normally closed contact
0
Width in number of modular spacings
-
Number of auxiliary contacts as change-over contact
0
With pre-assembled cabling
No
Number of auxiliary contacts as normally open contact
0
Width
386mm
Warehouse states
Zagreb:
1 pcs
Zadar:
0 pcs
