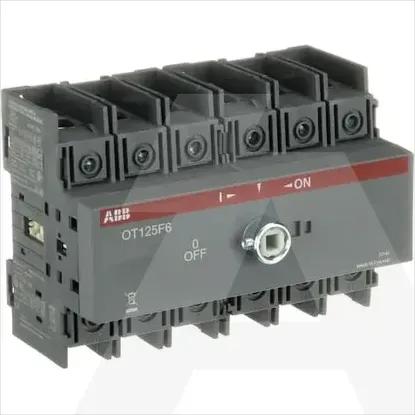

Main Product Image

1SCA105057R1001 | OT125F6

Code: 1524829

ManufacturerRAZNO
Catalog number1SCA105057R1001
Type
EAN code6417019391878

Details

  • Low-voltage industrial components
  • Switch disconnector
  • 1 KOM
  • ABB

Technical specifications

Suitable for floor mounting

No

Suitable for intermediate mounting

No

Rated operation power at AC-3, 400 V

-kW

Conditioned rated short-circuit current Iq

-kA

Number of switches

-

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally open contact

0

Rated operating voltage

750 - 750V

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Max. rated operation voltage Ue AC

750V

Version as safety switch

No

Version as emergency stop installation

No

Motor drive optional

No

Switching power at 400 V

45kW

Version as reversing switch

No

Rated permanent current at AC-23, 400 V

90A

Rated permanent current Iu

125A

Rated short-time withstand current lcw

2.5kA

Suitable for distribution board installation

Yes

Device construction

Built-in device fixed built-in technique

Voltage release optional

No

Number of poles

6

Rated operation power at AC-23, 400 V

45kW

Type of control element

Short thumb-grip

Interlockable

No

Degree of protection (NEMA)

1

Degree of protection (IP), front side

IP20

Rated permanent current at AC-21, 400 V

125A

Type of electrical connection of main circuit

Screw connection

Motor drive integrated

No

Suitable for front mounting centre

No

Suitable for front mounting 4-hole

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
