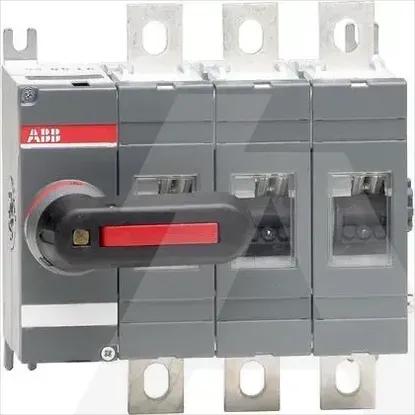

1SCA022763R4820 | OT200E03K
Code: 1523771
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
103,32 €
Neto103,32 €
RP129,15 €
DetailsWarehouse statesTechnical specifications
Details
- Low-voltage industrial components
- Switch disconnector
- 1 KOM
- ABB
Technical specifications
Rated operation power at AC-3, 400 V
-kW
Suitable for floor mounting
No
Suitable for intermediate mounting
No
Conditioned rated short-circuit current Iq
-kA
Number of switches
-
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
No
Version as emergency stop installation
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
1000V
Rated operating voltage
1000 - 1000V
Rated permanent current Iu
200A
Rated permanent current at AC-23, 400 V
200A
Rated permanent current at AC-21, 400 V
200A
Rated short-time withstand current lcw
8kA
Rated operation power at AC-23, 400 V
110kW
Switching power at 400 V
110kW
Number of poles
3
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Motor drive integrated
No
Voltage release optional
No
Device construction
Complete device in housing
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Colour control element
Black
Type of control element
Long turning handle
Interlockable
No
Type of electrical connection of main circuit
Bolt connection
With pre-assembled cabling
No
Degree of protection (IP), front side
IP00
Width
145.5mm
Width in number of modular spacings
-
Degree of protection (NEMA)
Other
Depth
107mm
Height
150mm
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
