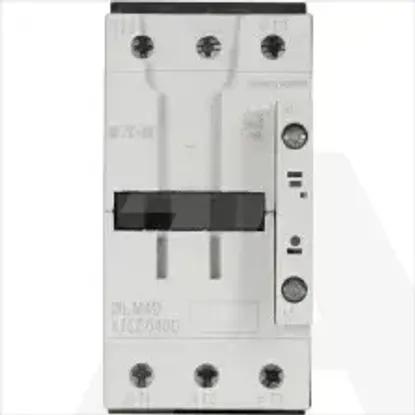

Main Product Image

DILM40(230V50HZ,240V60HZ)

Code: 1202587

ManufacturerRAZNO
Catalog number277766
Type
EAN code4015082777661

Details

  • Low-voltage industrial components
  • Power contactor, AC switching
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 50HZ

230 - 230V

Rated control supply voltage Us at AC 60HZ

240 - 240V

Rated control supply voltage Us at DC

0 - 0V

Operating voltage at AC 50 Hz

230 - 690V

Number of normally open contacts as main contact

3

Rated operation power at AC-3, 400 V

18.5kW

Voltage type for actuating

AC

Number of normally closed contacts as main contact

0

Rated operation current Ie at AC-4, 400 V

18A

Operating voltage at AC 60 Hz

230 - 690V

Rated operation current Ie at AC-3, 400 V

40A

Rated operation power NEMA

22kW

Modular version

No

Number of auxiliary contacts as normally open contact

0

Type of electrical connection of main circuit

Screw connection

Rated operation power at AC-4, 400 V

9kW

Number of auxiliary contacts as normally closed contact

0

Height

115mm

Depth

132.1mm

Width

55mm

Rated operation current Ie at AC-1, 400 V

60A


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
