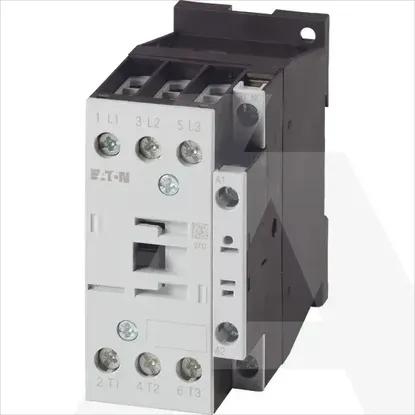

DILM32-01(230V50HZ,240V60HZ)

Number of normally closed contacts as main contact

0

Rated control supply voltage Us at AC 60HZ

240 - 240V

Voltage type for actuating

AC

Number of normally open contacts as main contact

3

Type of electrical connection of main circuit

Screw connection

Operating voltage at AC 60 Hz

24 - 690V

Operating voltage at AC 50 Hz

24 - 690V

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as normally closed contact

1

Depth

97mm

Rated operation power at AC-4, 400 V

7kW

Rated operation current Ie at AC-4, 400 V

15A

Rated operation power at AC-3, 400 V

15kW

Rated operation power NEMA

14.9kW

Rated operation current Ie at AC-3, 400 V

32A

Modular version

No

Width

45mm

Rated control supply voltage Us at DC

0 - 0V

Rated control supply voltage Us at AC 50HZ

230 - 230V

Rated operation current Ie at AC-1, 400 V

45A

Height

85mm
