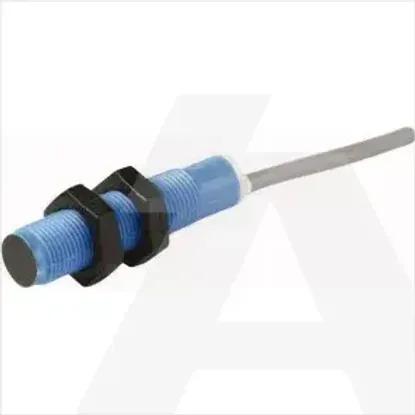

E55CAL12T110E

Width sensor

0mm

Mechanical mounting condition for sensor

Not flat

Length of sensor

55mm

Height of sensor

0mm

Type of switch function

Normally open contact

Switching distance

4mm

Number of contact energized outputs with signalling function

0

Type of switching output

NPN

Type of interface

None

Suitable for safety functions

No

Type of electric connection

Cable

Number of semiconductor outputs with signalling function

1

Diameter sensor

12mm

Number of protected semiconductor outputs

0

Number of protected contact energized outputs

0

Type of interface for safety communication

None

Type of actuation

Metallic Target

Coating housing

Other

Construction type housing

Cylinder, screw-thread

Supply voltage

10 - 30V

Voltage type

DC

Performance level according to EN ISO 13849-1

None

SIL according to IEC 61508

None

Rated control supply voltage Us at DC

10 - 30V

Cascadable

No

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Switching frequency

1000Hz

Material housing

Plastic

Compression-resistant

No

Degree of protection (NEMA)

4X, 13

Explosion safety category for gas

None

Explosion safety category for dust

None

Max. output current at protected output

0mA

With monitoring function downstream switching devices

No
