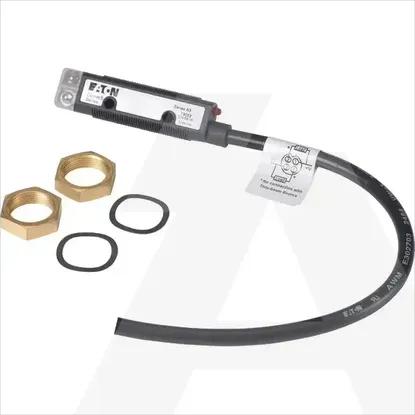

12102A6517

Scope of delivery of the one-way system

Receiver

Max. switching distance

24000mm

Pre failure notice

No

With time function

No

Max. opening angle

0°

Rated switching distance

24000mm

Setting procedure

Manual adjustment

With communication interface AS-Interface

No

With reflector

No

With communication interface analogue

No

Analogue output 0 mA ... 20 mA

No

Max. output current

100mA

With communication interface Ethernet

No

Analogue output 0 V ... 10 V

No

With communication interface DeviceNet

No

With other analogue output

No

With communication interface CANOpen

No

With communication interface PROFIBUS

No

Analogue output -10 V ... +10 V

No

With communication interface RS-232

No

With communication interface INTERBUS

No

Analogue output 4 mA ... 20 mA

No

Number of semiconductor outputs with signalling function

0

Explosion safety category for dust

None

Type of switch function

Programmable/configurable

Type of switching output

NPN

Number of protected semiconductor outputs

0

Width sensor

0mm

Number of protected contact energized outputs

0

Operation agent-safety class

Safety class 2

Construction type housing

Cylinder, screw-thread

Type of interface for safety communication

Other

Type of electric connection

Cable

With communication interface SSD

No

With communication interface RS-485

No

Switching frequency

142Hz

With communication interface SSI

No

Explosion safety category for gas

None

With communication interface RS-422

No

Number of contact energized outputs with signalling function

0

Type of safety according to IEC 61496-1

1

Rated control supply voltage Us at AC 50HZ

0 - 0V

Switching voltage of OSSD at state "high"

0V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

10 - 30V

Voltage type

DC

Wavelength of the sensor

0nm

With monitoring function downstream switching devices

No

Laser protection class

None

AWG-number

0

Type of light

Polarity free red light

With restart blockage

No

Material of cable sheath

Polyurethane (PUR)

Suitable for safety functions

No

Degree of protection (IP)

IP67

Light dot

0mm²

Degree of protection (NEMA)

1

Diameter sensor

18mm

Height of sensor

0mm

Material housing

Plastic

Material of optical surface

Plastic

Length of sensor

70mm

Max. output current at protected output

0mA

Min. reflector distance

0mm

Sensing mode

Light-/dark switching

Transmission range of the safety field

0m

Response time

7ms

Ambient temperature

-20 - 70°C
