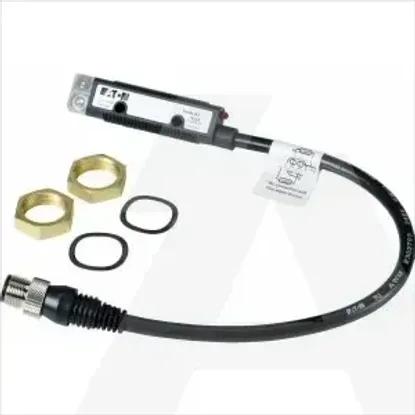

12100RQD07

Max. opening angle

0°

Pre failure notice

No

With time function

No

Rated switching distance

6000mm

With reflector

No

Max. switching distance

6000mm

Analogue output 4 mA ... 20 mA

No

Analogue output 0 mA ... 20 mA

No

With other analogue output

No

Analogue output 0 V ... 10 V

No

With communication interface Ethernet

No

With communication interface AS-Interface

No

Setting procedure

Manual adjustment

Analogue output -10 V ... +10 V

No

With communication interface CANOpen

No

Max. output current

100mA

With communication interface DeviceNet

No

With communication interface INTERBUS

No

With communication interface RS-485

No

With communication interface RS-422

No

With communication interface PROFIBUS

No

Number of semiconductor outputs with signalling function

0

Type of interface for safety communication

Other

Number of protected semiconductor outputs

0

With communication interface RS-232

No

With communication interface SSD

No

Number of contact energized outputs with signalling function

0

Type of switching output

PNP/NPN

Scope of delivery of the one-way system

Receiver

Diameter sensor

18mm

With communication interface SSI

No

Type of switch function

Programmable/configurable

With communication interface analogue

No

Explosion safety category for gas

None

Number of protected contact energized outputs

0

Operation agent-safety class

Safety class 2

Explosion safety category for dust

None

Construction type housing

Cylinder, screw-thread

Width sensor

0mm

Height of sensor

0mm

Type of electric connection

Plug-in connection

Length of sensor

65mm

Min. reflector distance

0mm

Response time

7ms

Material housing

Plastic

Max. output current at protected output

0mA

Material of optical surface

Plastic

Transmission range of the safety field

0m

Ambient temperature

-20 - 70°C

Switching frequency

142Hz

Sensing mode

Light-/dark switching

Type of safety according to IEC 61496-1

1

Switching voltage of OSSD at state "high"

0V

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

10 - 30V

Voltage type

DC

Wavelength of the sensor

0nm

Laser protection class

None

With monitoring function downstream switching devices

No

Type of light

Polarity free red light

Light dot

0mm²

AWG-number

0

Material of cable sheath

Polyurethane (PUR)

Suitable for safety functions

No

Degree of protection (IP)

IP67

Degree of protection (NEMA)

4

With restart blockage

No
