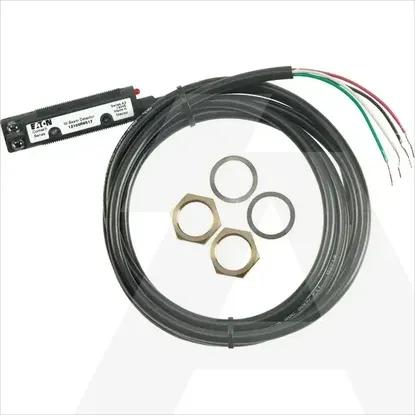

12100R6517

Pre failure notice

No

Scope of delivery of the one-way system

Receiver

With time function

No

Max. output current

100mA

Rated switching distance

6000mm

Max. switching distance

6000mm

Max. opening angle

0°

Analogue output 0 V ... 10 V

No

Analogue output 0 mA ... 20 mA

No

Analogue output -10 V ... +10 V

No

With other analogue output

No

Setting procedure

Manual adjustment

With reflector

No

With communication interface AS-Interface

No

With communication interface CANOpen

No

With communication interface Ethernet

No

Analogue output 4 mA ... 20 mA

No

With communication interface PROFIBUS

No

With communication interface INTERBUS

No

With communication interface DeviceNet

No

With communication interface RS-422

No

With communication interface RS-485

No

With communication interface SSI

No

With communication interface RS-232

No

With communication interface SSD

No

With communication interface analogue

No

Number of semiconductor outputs with signalling function

0

Number of protected contact energized outputs

0

Number of contact energized outputs with signalling function

0

Number of protected semiconductor outputs

0

Type of interface for safety communication

Other

Type of electric connection

Cable

Type of switching output

NPN

Type of switch function

Other

Explosion safety category for dust

None

Construction type housing

Cylinder, screw-thread

Explosion safety category for gas

None

Width sensor

0mm

Sensing mode

Light-/dark switching

Material of optical surface

Plastic

Diameter sensor

18mm

Operation agent-safety class

Safety class 2

Length of sensor

65mm

Min. reflector distance

0mm

Height of sensor

0mm

Max. output current at protected output

0mA

Material housing

Plastic

Ambient temperature

-20 - 70°C

Switching frequency

142Hz

Type of safety according to IEC 61496-1

1

Switching voltage of OSSD at state "high"

0V

Rated control supply voltage Us at AC 50HZ

0 - 0V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Rated control supply voltage Us at DC

10 - 30V

With monitoring function downstream switching devices

No

Voltage type

DC

Laser protection class

None

Wavelength of the sensor

0nm

Type of light

Polarity free red light

Light dot

0mm²

AWG-number

0

Material of cable sheath

Polyurethane (PUR)

With restart blockage

No

Suitable for safety functions

No

Degree of protection (IP)

IP67

Degree of protection (NEMA)

1

Response time

7ms

Transmission range of the safety field

0m
