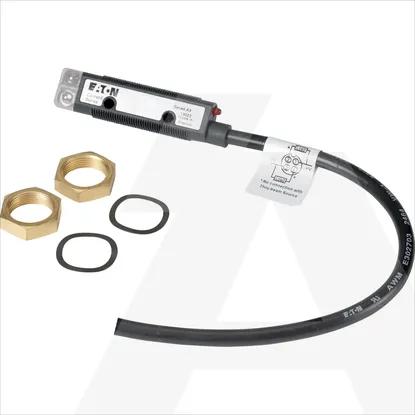

Details
- Sensors
- Through beam photoelectric sensor
- 1 KOM
- EATON
Technical specifications
Scope of delivery of the one-way system
Transmitter
Rated switching distance
24000mm
With time function
No
Max. switching distance
24000mm
Max. opening angle
0°
Max. output current
100mA
Pre failure notice
No
Switching frequency
0Hz
Type of safety according to IEC 61496-1
1
Switching voltage of OSSD at state "high"
0V
Rated control supply voltage Us at AC 60HZ
0 - 0V
Rated control supply voltage Us at DC
10 - 30V
Rated control supply voltage Us at AC 50HZ
0 - 0V
Voltage type
DC
With monitoring function downstream switching devices
No
Laser protection class
None
Wavelength of the sensor
0nm
Type of light
Polarity free red light
Light dot
0mm²
AWG-number
0
Material of cable sheath
Polyurethane (PUR)
Analogue output 0 V ... 10 V
No
With reflector
No
Analogue output 4 mA ... 20 mA
No
Analogue output 0 mA ... 20 mA
No
With communication interface analogue
No
Analogue output -10 V ... +10 V
No
With other analogue output
No
Setting procedure
Manual adjustment
With communication interface AS-Interface
No
With communication interface CANOpen
No
With communication interface DeviceNet
No
With communication interface INTERBUS
No
With communication interface Ethernet
No
With communication interface PROFIBUS
No
With communication interface RS-232
No
With communication interface RS-422
No
With communication interface RS-485
No
With communication interface SSI
No
Number of protected semiconductor outputs
0
Number of contact energized outputs with signalling function
0
Number of semiconductor outputs with signalling function
0
With communication interface SSD
No
Type of interface for safety communication
Other
Number of protected contact energized outputs
0
Type of switching output
NPN
Type of electric connection
Connector M12
Explosion safety category for dust
None
Operation agent-safety class
Safety class 2
Type of switch function
Other
Explosion safety category for gas
None
Construction type housing
Cylinder, screw-thread
Width sensor
0mm
Diameter sensor
18mm
Material of optical surface
Plastic
Height of sensor
0mm
Length of sensor
70mm
Sensing mode
Light-/dark switching
Material housing
Plastic
With restart blockage
No
Suitable for safety functions
No
Degree of protection (IP)
IP67
Degree of protection (NEMA)
6
Max. output current at protected output
0mA
Ambient temperature
-20 - 70°C
Min. reflector distance
0mm
Response time
7ms
Transmission range of the safety field
0m
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
