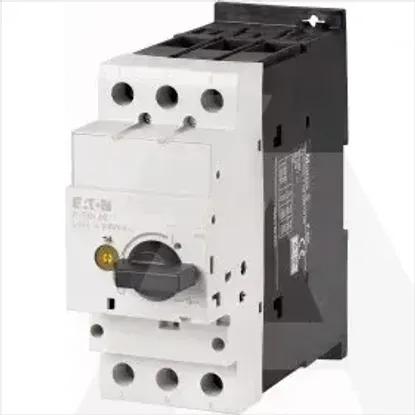

Main Product Image

P-SOL60

Code: 1092938

ManufacturerRAZNO
Catalog number120936
Type
EAN code4015081187669

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Max. rated operation voltage Ue AC

1000V

Version as maintenance-/service switch

No

Version as main switch

No

Version as reversing switch

No

Number of switches

1

Version as emergency stop installation

No

Rated operating voltage

690 - 690V

Rated permanent current Iu

63A

Rated permanent current at AC-21, 400 V

0A

Rated short-time withstand current lcw

1.5kA

Rated permanent current at AC-23, 400 V

0A

Switching power at 400 V

63kW

Conditioned rated short-circuit current Iq

0kA

Rated operation power at AC-3, 400 V

0kW

Version as safety switch

No

Number of poles

2

Number of auxiliary contacts as normally closed contact

0

Voltage release optional

Yes

Motor drive optional

No

Device construction

Built-in device fixed built-in technique

Rated operation power at AC-23, 400 V

0kW

Number of auxiliary contacts as normally open contact

0

Number of auxiliary contacts as change-over contact

0

Motor drive integrated

No

Suitable for floor mounting

Yes

Suitable for front mounting centre

No

Suitable for distribution board installation

Yes

Suitable for intermediate mounting

No

Colour control element

Black

Type of control element

Turn button

Suitable for front mounting 4-hole

No

Interlockable

No

Type of electrical connection of main circuit

Frame clamp

With pre-assembled cabling

No

Degree of protection (IP), front side

IP20

Height

160mm

Depth

140mm

Width

55mm

Degree of protection (NEMA)

Other


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
