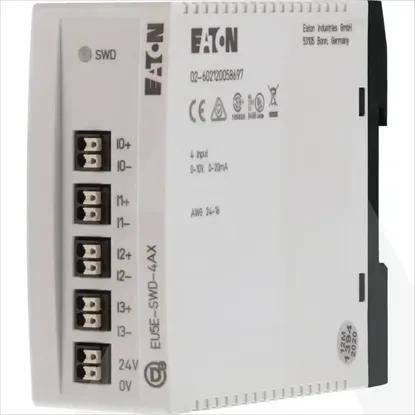

EU5E-SWD-4AX

Supply voltage DC

0 - 0V

Supply voltage AC 50 Hz

0 - 0V

Supply voltage AC 60 Hz

0 - 0V

Input, voltage

Yes

Input, resistor

No

Output, voltage

No

Resolution of the analogue inputs

4Bit

Input signal, configurable

No

Input, thermocouple

No

Input, current

Yes

Input, resistance thermometer

No

Output, current

No

Output signal configurable

No

Resolution of the analogue outputs

0Bit

Voltage type of supply voltage

DC

Number of interfaces PROFINET

0

Number of analogue inputs

4

Number of analogue outputs

0

Number of HW-interfaces industrial Ethernet

0

Number of HW-interfaces RS-422

0

Power consumption

0.6W

Number of HW-interfaces Wireless

0

Number of HW-interfaces parallel

0

Number of HW-interfaces serial TTY

0

Number of HW-interfaces RS-485

0

Number of HW-interfaces other

0

Supporting protocol for EtherCAT

No

Number of HW-interfaces RS-232

0

Analogue outputs configurable

Yes

Analogue inputs configurable

Yes

Number of HW-interfaces USB

0

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

Yes

Radio standard Bluetooth

No

Radio standard Wi-Fi 802.11

No

Radio standard GPRS

No

Radio standard UMTS

No

Radio standard GSM

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Degree of protection (NEMA)

1

Type of electric connection

Flat plug-in connection

Fieldbus connection over separate bus coupler possible

Yes

Rail mounting possible

Yes

Wall mounting/direct mounting

Yes

Front built-in possible

No

Rack-assembly possible

No

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Appendant operation agent (Ex ib)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

Certified for UL hazardous location class III

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location group F (carbonaceous dusts)

No

Certified for UL hazardous location group G (non-conductive dusts)

No

Width

35mm

Height

90mm

Depth

102mm

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for Modbus

No

Supporting protocol for KNX

No

Supporting protocol for Data-Highway

No

Supporting protocol for SUCONET

No

Supporting protocol for DeviceNet

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for SERCOS

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for AS-Interface Safety at Work

No
