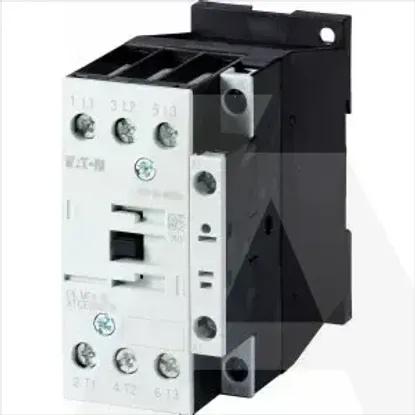

DILMF8-10(RAC48)

Rated control supply voltage Us at AC 50HZ

42 - 48V

Operating voltage at AC 60 Hz

230 - 690V

Rated control supply voltage Us at AC 60HZ

42 - 48V

Type of electrical connection of main circuit

Screw connection

Operating voltage at AC 50 Hz

230 - 690V

Number of normally open contacts as main contact

3

Rated operation current Ie at AC-1, 400 V

20A

Rated operation current Ie at AC-4, 400 V

5A

Number of normally closed contacts as main contact

0

Rated operation power at AC-3, 400 V

3kW

Voltage type for actuating

AC

Number of auxiliary contacts as normally closed contact

0

Rated operation power NEMA

7.4kW

Rated operation current Ie at AC-3, 400 V

7A

Height

85mm

Rated operation power at AC-4, 400 V

2.2kW

Modular version

No

Width

45mm

Number of auxiliary contacts as normally open contact

1

Depth

97mm

Rated control supply voltage Us at DC

0 - 0V
