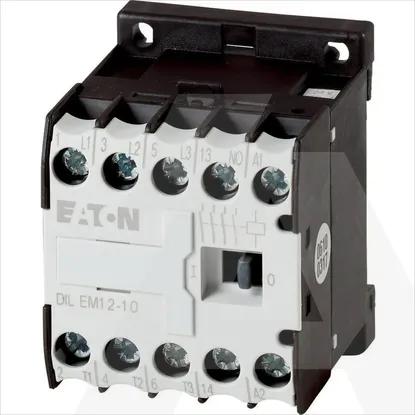

DILEM12-10(24V50HZ)

Rated control supply voltage Us at AC 50HZ

24 - 24V

Rated control supply voltage Us at AC 60HZ

0 - 0V

Voltage type for actuating

AC

Rated control supply voltage Us at DC

0 - 0V

Type of electrical connection of main circuit

Screw connection

Operating voltage at AC 50 Hz

24 - 690V

Operating voltage at AC 60 Hz

24 - 690V

Rated operation power at AC-3, 400 V

5.5kW

Rated operation current Ie at AC-3, 400 V

12A

Rated operation current Ie at AC-1, 400 V

22A

Number of auxiliary contacts as normally open contact

1

Rated operation power at AC-4, 400 V

3kW

Height

58mm

Rated operation current Ie at AC-4, 400 V

6.6A

Number of auxiliary contacts as normally closed contact

0

Width

45mm

Number of normally open contacts as main contact

3

Modular version

No

Rated operation power NEMA

3.7kW

Depth

52mm

Number of normally closed contacts as main contact

0
