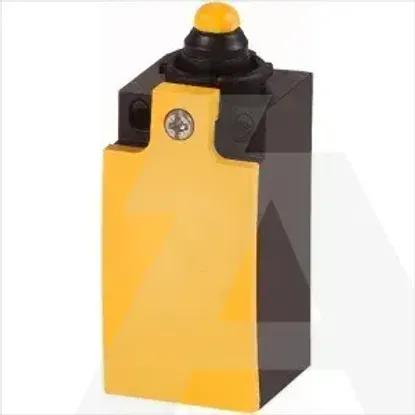

LS-S20B

Code: 1090831

Degree of protection (IP)

IP67

Type of control element

Plunger

Material housing

Plastic

Ambient temperature during operating

25 - 70°C

Number of contacts as normally closed contact

0

Number of contacts as change-over contact

0

Number of contacts as normally open contact

2

Type of electric connection

Other

Degree of protection (NEMA)

4X

Explosion safety category for dust

None

Length of sensor

33.5mm

Height of sensor

61mm

Width sensor

31mm

Construction type housing

Cuboid

Type of interface

None

Diameter sensor

0mm

Coating housing

Other

Rated operation current Ie at AC-15, 230 V

6A

Suitable for safety functions

No

Switching function latching

No

Explosion safety category for gas

None

Type of interface for safety communication

None

With status indication

No

Rated operation current Ie at DC-13, 125 V

0.8A

Rated operation current Ie at DC-13, 230 V

0.3A

Rated operation current Ie at AC-15, 24 V

6A

Forced opening

No

Output electronic

No

Switching function

Slow-action switch

Alignment of the control element

Other

Rated operation current Ie at AC-15, 125 V

6A

Rated operation current Ie at DC-13, 24 V

3A

Number of safety auxiliary contacts

0
