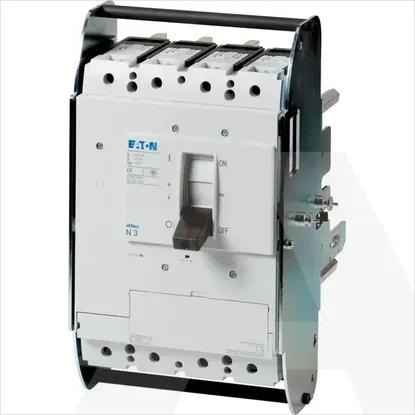

N3-4-400-AVE

Rated permanent current Iu

400A

Version as main switch

Yes

Version as reversing switch

No

Version as safety switch

No

Max. rated operation voltage Ue AC

690V

Number of switches

1

Version as maintenance-/service switch

Yes

Rated permanent current at AC-21, 400 V

0A

Rated short-time withstand current lcw

12kA

Rated permanent current at AC-23, 400 V

0A

Number of auxiliary contacts as normally closed contact

0

Rated operation power at AC-23, 400 V

200kW

Number of auxiliary contacts as change-over contact

0

Number of poles

4

Device construction

Built-in device slide-in technique (withdrawable)

Rated operating voltage

690 - 690V

Suitable for floor mounting

Yes

Version as emergency stop installation

Yes

Suitable for intermediate mounting

Yes

Number of auxiliary contacts as normally open contact

0

Type of electrical connection of main circuit

Screw connection

Suitable for front mounting 4-hole

No

With pre-assembled cabling

No

Interlockable

Yes

Rated operation power at AC-3, 400 V

0kW

Height

346mm

Depth

260mm

Width

230mm

Switching power at 400 V

0kW

Degree of protection (IP), front side

IP20

Motor drive integrated

No

Conditioned rated short-circuit current Iq

0kA

Voltage release optional

Yes

Suitable for front mounting centre

No

Suitable for distribution board installation

Yes

Motor drive optional

Yes

Colour control element

Black

Type of control element

Rocker lever
