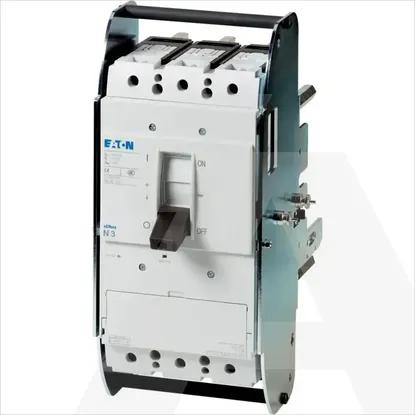

N3-400-AVE

Rated permanent current Iu

400A

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Max. rated operation voltage Ue AC

690V

Rated permanent current at AC-23, 400 V

0A

Number of switches

1

Version as reversing switch

No

Rated operating voltage

690 - 690V

Rated permanent current at AC-21, 400 V

0A

Rated short-time withstand current lcw

12kA

Number of poles

3

Rated operation power at AC-23, 400 V

200kW

Number of auxiliary contacts as normally closed contact

0

Switching power at 400 V

0kW

Version as emergency stop installation

Yes

Rated operation power at AC-3, 400 V

0kW

Number of auxiliary contacts as change-over contact

0

Motor drive optional

Yes

Conditioned rated short-circuit current Iq

0kA

Number of auxiliary contacts as normally open contact

0

Version as safety switch

No

Voltage release optional

Yes

Device construction

Built-in device slide-in technique (withdrawable)

Suitable for front mounting 4-hole

No

Motor drive integrated

No

Suitable for intermediate mounting

Yes

Interlockable

Yes

Type of control element

Rocker lever

Suitable for floor mounting

Yes

Type of electrical connection of main circuit

Screw connection

Colour control element

Black

Height

346mm

With pre-assembled cabling

No

Depth

260mm

Suitable for distribution board installation

Yes

Width

185mm

Suitable for front mounting centre

No

Degree of protection (IP), front side

IP20
