Aleta.hr

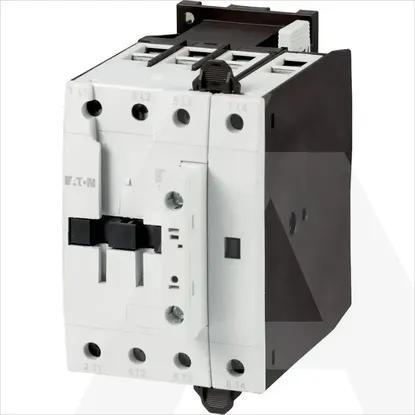

Main Product Image

DILMP80(230V50HZ,240V60HZ)

Code: 1065077

ManufacturerRAZNO
Catalog number109884
Type
EAN code4015081094509

Details

  • Low-voltage industrial components
  • Power contactor, AC switching
  • 1 KOM
  • EATON

Technical specifications

Rated control supply voltage Us at AC 50HZ

230 - 230V

Voltage type for actuating

AC

Rated control supply voltage Us at DC

0 - 0V

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

4

Operating voltage at AC 60 Hz

230 - 690V

Rated operation power at AC-3, 400 V

22kW

Operating voltage at AC 50 Hz

230 - 690V

Type of electrical connection of main circuit

Screw connection

Rated operation current Ie at AC-3, 400 V

50A

Number of auxiliary contacts as normally open contact

0

Depth

132mm

Rated operation power NEMA

29.8kW

Rated control supply voltage Us at AC 60HZ

240 - 240V

Rated operation power at AC-4, 400 V

20kW

Rated operation current Ie at AC-1, 400 V

80A

Rated operation current Ie at AC-4, 400 V

40A

Width

74mm

Height

115mm

Number of auxiliary contacts as normally closed contact

0

Modular version

No


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
