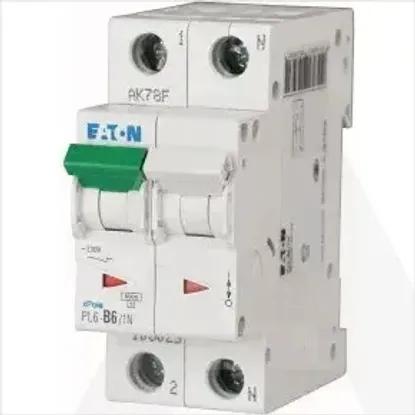

PL6-B6/1N

Degree of protection (IP)

IP20

Voltage type

AC

Suitable for flush-mounted installation

No

Rated voltage

400V

Rated current

6A

Built-in depth

70.5mm

Width in number of modular spacings

3

Release characteristic

C

Ambient temperature during operating

-25 - 75°C

Connectable conductor cross section multi-wired

1 - 25mm²

Number of protected poles

1

Connectable conductor cross section solid-core

1 - 25mm²

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

2

Rated insulation voltage Ui

440V

Current limiting class

3

Additional equipment possible

Yes

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

0kA

Frequency

50 - 60Hz

Pollution degree

2

Over voltage category

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

6kA

Concurrently switching neutral conductor

Yes

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

6kA
