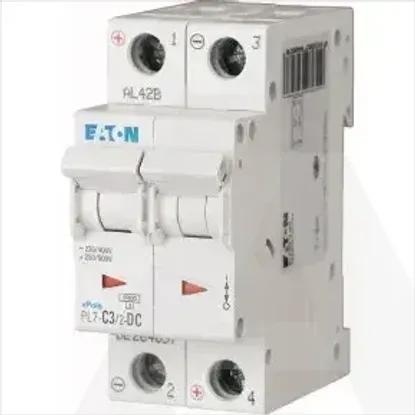

Main Product Image

PL7-C3/2-DC

Code: 1063400

ManufacturerRAZNO
Catalog number264897
Type
EAN code4015082648978

Details

  • Circuit breakers and fuses
  • Miniature circuit breaker (MCB)
  • 1 KOM
  • EATON

Technical specifications

Degree of protection (IP)

IP20

Voltage type

DC

Suitable for flush-mounted installation

No

Rated voltage

220V

Built-in depth

70.5mm

Rated current

3A

Width in number of modular spacings

2

Release characteristic

C

Ambient temperature during operating

-25 - 75°C

Connectable conductor cross section multi-wired

1 - 25mm²

Number of protected poles

2

Connectable conductor cross section solid-core

1 - 25mm²

Rated impulse withstand voltage Uimp

4kV

Number of poles (total)

2

Rated insulation voltage Ui

440V

Current limiting class

3

Additional equipment possible

Yes

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Frequency

0 - 0Hz

Pollution degree

2

Over voltage category

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Concurrently switching neutral conductor

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
