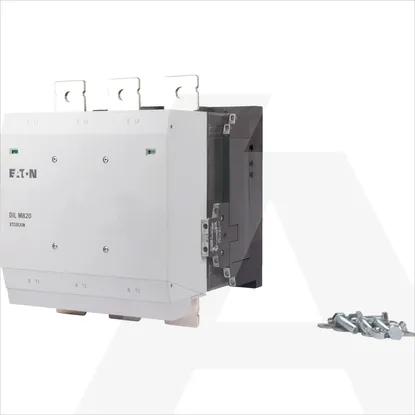

DILM820/22(RAC500)

Rated control supply voltage Us at AC 60HZ

480 - 500V

Voltage type for actuating

AC/DC

Operating voltage at AC 60 Hz

250 - 500V

Rated operation power at AC-3, 400 V

450kW

Rated operation power NEMA

522kW

Rated operation current Ie at AC-1, 400 V

1225A

Rated control supply voltage Us at DC

250 - 700V

Rated operation current Ie at AC-4, 400 V

656A

Number of auxiliary contacts as normally open contact

2

Number of auxiliary contacts as normally closed contact

2

Rated operation current Ie at AC-3, 400 V

820A

Width

250mm

Modular version

No

Rated control supply voltage Us at AC 50HZ

480 - 500V

Depth

232mm

Operating voltage at AC 50 Hz

250 - 500V

Height

296mm

Type of electrical connection of main circuit

Rail connection

Rated operation power at AC-4, 400 V

355kW

Number of normally closed contacts as main contact

0

Number of normally open contacts as main contact

3
