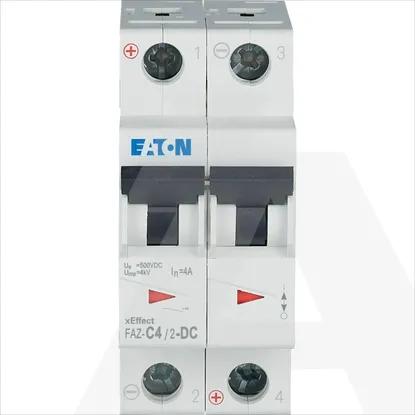

FAZ-C4/2-DC

Release characteristic

C

Number of protected poles

2

Rated insulation voltage Ui

440V

Voltage type

DC

Rated voltage

250V

Built-in depth

70.5mm

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Frequency

50 - 60Hz

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Pollution degree

2

Power loss

2.7W

Flush-mounted installation

No

Number of poles (total)

2

Current limiting class

3

Concurrently switching neutral conductor

No

Additional equipment possible

Yes

Degree of protection (IP)

IP20

Over voltage category

3

Width in number of modular spacings

2

Connectable conductor cross section multi-wired

1 - 25mm²

Ambient temperature during operating

-25 - 75°C

Connectable conductor cross section solid-core

1 - 25mm²

Explosion-proof

No

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Rated current

4A
