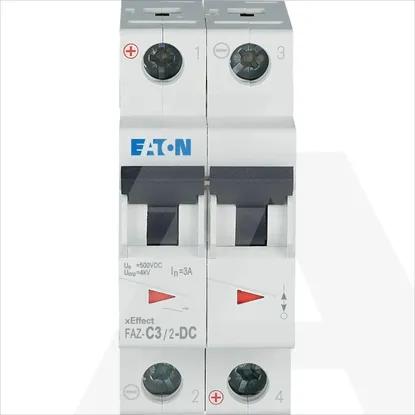

FAZ-C3/2-DC

Release characteristic

C

Rated insulation voltage Ui

440V

Rated impulse withstand voltage Uimp

4kV

Rated current

3A

Frequency

50 - 60Hz

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Number of poles (total)

2

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Number of protected poles

2

Voltage type

DC

Current limiting class

3

Flush-mounted installation

No

Pollution degree

2

Connectable conductor cross section multi-wired

1 - 25mm²

Over voltage category

3

Built-in depth

70.5mm

Additional equipment possible

Yes

Width in number of modular spacings

2

Explosion-proof

No

Power loss

2.3W

Rated voltage

250V

Ambient temperature during operating

-25 - 75°C

Concurrently switching neutral conductor

No

Connectable conductor cross section solid-core

1 - 25mm²

Degree of protection (IP)

IP20
