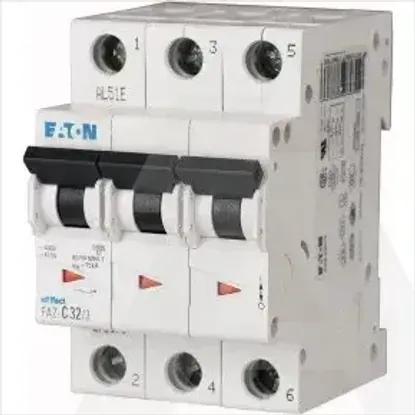

Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
Technical specifications
Rated voltage
400V
Release characteristic
C
Number of protected poles
3
Built-in depth
70.5mm
Number of poles (total)
3
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Rated insulation voltage Ui
440V
Rated impulse withstand voltage Uimp
4kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Voltage type
AC
Frequency
50 - 60Hz
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
15kA
Pollution degree
2
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
15kA
Ambient temperature during operating
-25 - 75°C
Rated current
6A
Over voltage category
3
Additional equipment possible
Yes
Power loss
3.6W
Connectable conductor cross section multi-wired
1 - 25mm²
Concurrently switching neutral conductor
No
Explosion-proof
No
Width in number of modular spacings
3
Connectable conductor cross section solid-core
1 - 25mm²
Flush-mounted installation
No
Degree of protection (IP)
IP20
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
