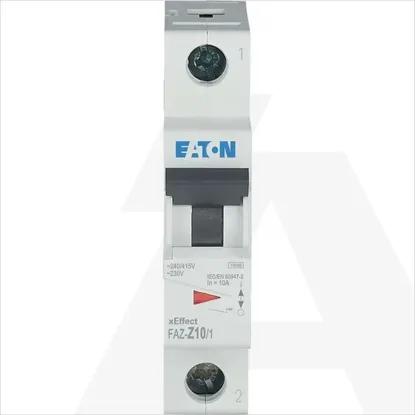

FAZ-Z10/1

Release characteristic

Z

Built-in depth

70.5mm

Rated voltage

230V

Rated insulation voltage Ui

440V

Rated impulse withstand voltage Uimp

4kV

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V

0kA

Voltage type

AC

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V

10kA

Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V

10kA

Frequency

50 - 60Hz

Rated current

10A

Current limiting class

3

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V

0kA

Over voltage category

3

Number of protected poles

1

Pollution degree

2

Flush-mounted installation

No

Concurrently switching neutral conductor

No

Power loss

3.3W

Number of poles (total)

1

Width in number of modular spacings

1

Degree of protection (IP)

IP20

Additional equipment possible

Yes

Ambient temperature during operating

-25 - 75°C

Explosion-proof

No

Connectable conductor cross section multi-wired

1 - 25mm²

Connectable conductor cross section solid-core

1 - 25mm²
