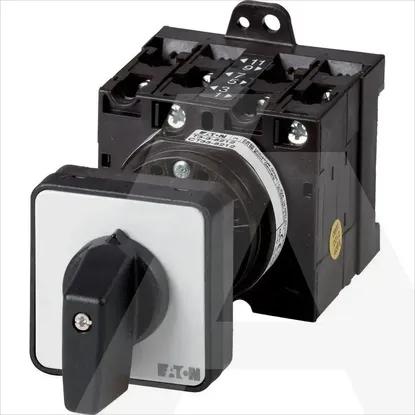

T3-1-SOND*/Z

Number of poles

0

Max. rated operation voltage Ue AC

690V

Version as main switch

No

Version as maintenance-/service switch

No

Version as reversing switch

No

Version as safety switch

No

Rated operating voltage

690 - 690V

Rated permanent current Iu

32A

Number of switches

1

Rated permanent current at AC-23, 400 V

32A

Rated operation power at AC-3, 400 V

11kW

Rated operation power at AC-23, 400 V

15kW

Switching power at 400 V

15kW

Number of auxiliary contacts as normally open contact

0

Conditioned rated short-circuit current Iq

1kA

Motor drive optional

No

Number of auxiliary contacts as change-over contact

0

Number of auxiliary contacts as normally closed contact

0

Voltage release optional

No

Motor drive integrated

No

Device construction

Built-in device fixed built-in technique

Suitable for front mounting centre

No

Suitable for floor mounting

Yes

Suitable for front mounting 4-hole

No

Rated permanent current at AC-21, 400 V

32A

Rated short-time withstand current lcw

0.65kA

Suitable for intermediate mounting

Yes

Suitable for distribution board installation

No

Version as emergency stop installation

No

Interlockable

No

Type of control element

Short thumb-grip

Colour control element

Black

Type of electrical connection of main circuit

Screw connection

With pre-assembled cabling

No

Degree of protection (NEMA)

12

Degree of protection (IP), front side

IP65

Width

61mm

Height

54mm

Depth

121mm
