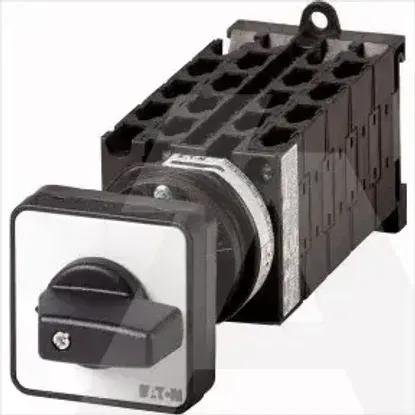

T0-9-SOND*/Z
Code: 1044227
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
158,05 €
Neto158,05 €
RP197,56 €
DetailsWarehouse statesTechnical specificationsRelated products
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
Technical specifications
Number of poles
0
Version as safety switch
No
Version as maintenance-/service switch
No
Number of switches
1
Version as main switch
No
Switching power at 400 V
5.5kW
Rated permanent current at AC-23, 400 V
13.3A
Rated operation power at AC-3, 400 V
5.5kW
Rated permanent current at AC-21, 400 V
20A
Rated permanent current Iu
20A
Rated operating voltage
690 - 690V
Conditioned rated short-circuit current Iq
6kA
Rated operation power at AC-23, 400 V
5.5kW
Version as reversing switch
No
Number of auxiliary contacts as normally open contact
0
Rated short-time withstand current lcw
0.32kA
Number of auxiliary contacts as normally closed contact
0
Suitable for distribution board installation
No
Suitable for front mounting centre
No
Suitable for floor mounting
Yes
Type of control element
Short thumb-grip
Device construction
Built-in device fixed built-in technique
Voltage release optional
No
Suitable for intermediate mounting
Yes
Interlockable
No
Degree of protection (NEMA)
12
Motor drive integrated
No
Suitable for front mounting 4-hole
No
Version as emergency stop installation
No
Max. rated operation voltage Ue AC
690V
Number of auxiliary contacts as change-over contact
0
Motor drive optional
No
Depth
194mm
Degree of protection (IP), front side
IP65
Width
48mm
Height
48mm
Type of electrical connection of main circuit
Screw connection
With pre-assembled cabling
No
Colour control element
Black
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
Related products
