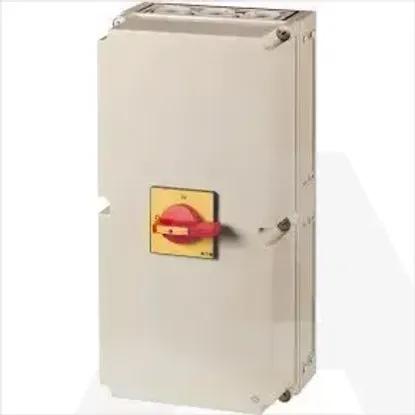

Main Product Image

T8-3-8342/I48/SVB/HI11

Code: 1042954

ManufacturerRAZNO
Catalog number201450
Type
EAN code4015082014506

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Max. rated operation voltage Ue AC

690V

Version as reversing switch

No

Rated permanent current at AC-21, 400 V

315A

Rated operating voltage

690 - 690V

Rated permanent current at AC-23, 400 V

245A

Rated permanent current Iu

315A

Version as main switch

Yes

Switching power at 400 V

132kW

Rated short-time withstand current lcw

4.2kA

Rated operation power at AC-23, 400 V

132kW

Rated operation power at AC-3, 400 V

55kW

Number of auxiliary contacts as change-over contact

0

Number of poles

6

Suitable for floor mounting

Yes

Voltage release optional

No

Motor drive optional

No

Number of switches

1

Number of auxiliary contacts as normally closed contact

1

Suitable for front mounting centre

No

Number of auxiliary contacts as normally open contact

1

Version as maintenance-/service switch

Yes

Type of electrical connection of main circuit

Screw connection

Suitable for front mounting 4-hole

No

Suitable for distribution board installation

No

Type of control element

Door coupling rotary drive

Suitable for intermediate mounting

No

Device construction

Complete device in housing

Interlockable

Yes

With pre-assembled cabling

No

Version as safety switch

No

Conditioned rated short-circuit current Iq

5kA

Motor drive integrated

No

Colour control element

Red

Version as emergency stop installation

Yes

Degree of protection (NEMA)

12

Width

375mm

Height

345mm

Degree of protection (IP), front side

IP64

Depth

750mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
