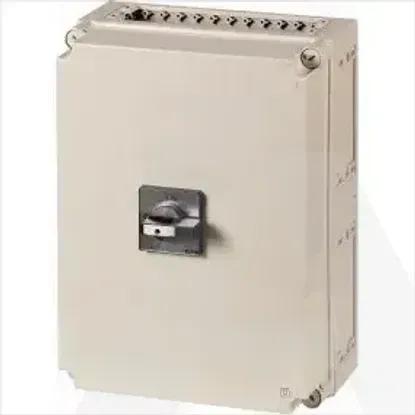

Main Product Image

T6-160-6/I45/SVB-SW/HI11

Code: 1042951

ManufacturerRAZNO
Catalog number201447
Type
EAN code4015082014476

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Version as main switch

Yes

Version as maintenance-/service switch

Yes

Version as emergency stop installation

No

Version as safety switch

No

Number of switches

1

Version as reversing switch

No

Max. rated operation voltage Ue AC

690V

Rated permanent current Iu

160A

Rated permanent current at AC-23, 400 V

105A

Rated operating voltage

690 - 690V

Rated permanent current at AC-21, 400 V

160A

Rated operation power at AC-3, 400 V

45kW

Rated short-time withstand current lcw

3kA

Switching power at 400 V

55kW

Rated operation power at AC-23, 400 V

55kW

Suitable for floor mounting

Yes

Suitable for distribution board installation

No

Suitable for front mounting 4-hole

No

Number of auxiliary contacts as normally closed contact

1

Suitable for intermediate mounting

No

Number of auxiliary contacts as normally open contact

1

Type of control element

Door coupling rotary drive

Number of poles

6

Conditioned rated short-circuit current Iq

5kA

Interlockable

Yes

Motor drive optional

No

Motor drive integrated

No

Number of auxiliary contacts as change-over contact

0

Device construction

Complete device in housing

Voltage release optional

No

Suitable for front mounting centre

No

With pre-assembled cabling

No

Colour control element

Black

Height

285mm

Width

375mm

Depth

500mm

Type of electrical connection of main circuit

Screw connection

Degree of protection (IP), front side

IP65

Degree of protection (NEMA)

12


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs
