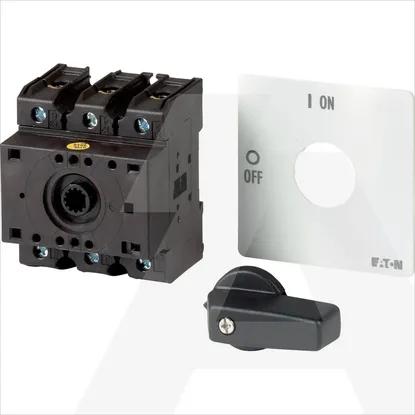

P3-63/XZ
Code: 1039220
Order only
Zagreb0 pcs
Zadar0 pcs
Sign in or create an account for lower prices and other benefits
WSP*
73,88 €
Neto73,88 €
RP92,35 €
DetailsWarehouse statesTechnical specifications
Details
- Low-voltage industrial components
- Switch disconnector (low voltage)
- 1 KOM
- EATON
Technical specifications
Rated permanent current at AC-21, 400 V
63A
Rated operation power at AC-3, 400 V
30kW
Version as safety switch
No
Rated permanent current at AC-23, 400 V
63A
Version as reversing switch
No
Max. rated operation voltage Ue AC
690V
Number of switches
1
Version as main switch
No
Rated short-time withstand current lcw
1.26kA
Version as emergency stop installation
No
Rated permanent current Iu
63A
Rated operation power at AC-23, 400 V
30kW
Conditioned rated short-circuit current Iq
100kA
Number of poles
3
Rated operating voltage
690 - 690V
Motor drive integrated
No
Motor drive optional
No
Number of auxiliary contacts as normally open contact
0
Switching power at 400 V
30kW
Suitable for distribution board installation
No
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Version as maintenance-/service switch
No
Voltage release optional
No
Interlockable
No
Type of electrical connection of main circuit
Screw connection
Suitable for intermediate mounting
No
With pre-assembled cabling
No
Width
87mm
Degree of protection (NEMA)
12
Height
87mm
Depth
140mm
Colour control element
Other
Type of control element
Short thumb-grip
Degree of protection (IP), front side
IP65
Suitable for floor mounting
Yes
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
