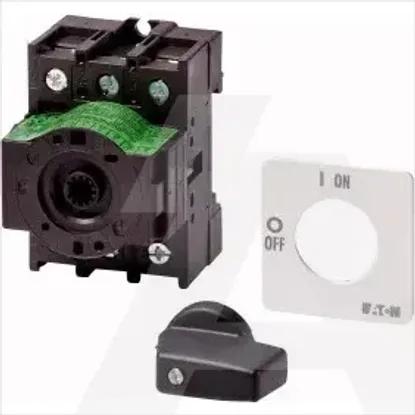

P1-25/XZ

Version as reversing switch

No

Version as maintenance-/service switch

Yes

Version as safety switch

No

Max. rated operation voltage Ue AC

690V

Rated permanent current at AC-21, 400 V

25A

Rated permanent current Iu

25A

Version as emergency stop installation

No

Rated operation power at AC-3, 400 V

7.5kW

Version as main switch

Yes

Rated operation power at AC-23, 400 V

13kW

Rated operating voltage

690 - 690V

Number of switches

1

Rated permanent current at AC-23, 400 V

25A

Rated short-time withstand current lcw

0.64kA

Number of poles

3

Switching power at 400 V

13kW

Conditioned rated short-circuit current Iq

80kA

Number of auxiliary contacts as normally closed contact

0

Number of auxiliary contacts as change-over contact

0

Suitable for floor mounting

Yes

Motor drive integrated

No

Motor drive optional

No

Number of auxiliary contacts as normally open contact

0

Voltage release optional

No

Suitable for front mounting 4-hole

No

Suitable for front mounting centre

No

Suitable for distribution board installation

No

Device construction

Built-in device fixed built-in technique

Degree of protection (NEMA)

12

Degree of protection (IP), front side

IP65

Height

70mm

With pre-assembled cabling

No

Suitable for intermediate mounting

No

Type of electrical connection of main circuit

Screw connection

Depth

131mm

Width

49mm

Interlockable

No

Colour control element

Other

Type of control element

Short thumb-grip
