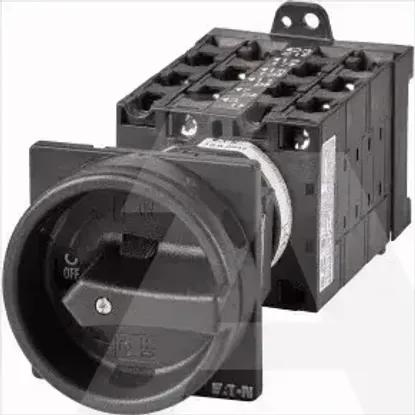

Main Product Image

T3-6-15168/V/SVB-SW

Code: 1032505

ManufacturerRAZNO
Catalog number003230
Type
EAN code4015080032304

Details

  • Low-voltage industrial components
  • Switch disconnector (low voltage)
  • 1 KOM
  • EATON

Technical specifications

Max. rated operation voltage Ue AC

690V

Rated permanent current at AC-23, 400 V

32A

Version as maintenance-/service switch

Yes

Version as emergency stop installation

No

Version as reversing switch

No

Rated operating voltage

690 - 690V

Version as main switch

Yes

Version as safety switch

No

Rated permanent current Iu

32A

Rated permanent current at AC-21, 400 V

32A

Rated short-time withstand current lcw

0.65kA

Conditioned rated short-circuit current Iq

1kA

Rated operation power at AC-3, 400 V

11kW

Number of switches

1

Switching power at 400 V

15kW

Number of auxiliary contacts as normally open contact

2

Motor drive integrated

No

Motor drive optional

No

Number of auxiliary contacts as normally closed contact

1

Suitable for front mounting 4-hole

No

Device construction

Built-in device fixed built-in technique

Voltage release optional

No

Rated operation power at AC-23, 400 V

15kW

Number of poles

9

Suitable for distribution board installation

No

Suitable for front mounting centre

No

Suitable for floor mounting

Yes

Number of auxiliary contacts as change-over contact

0

Colour control element

Black

Degree of protection (NEMA)

12

Suitable for intermediate mounting

Yes

Interlockable

Yes

Height

74mm

Type of control element

Door coupling rotary drive

Degree of protection (IP), front side

IP65

With pre-assembled cabling

No

Width

65mm

Type of electrical connection of main circuit

Screw connection

Depth

179mm


Warehouse states

Zagreb:

0 pcs

Zadar:

0 pcs


From same serie
