Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
25kA
Rated permanent current Iu
250A
Number of auxiliary contacts as normally closed contact
0
DIN rail (top hat rail) mounting optional
Yes
Adjustment range short-term delayed short-circuit release
0 - 0A
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
No
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
No
Position of connection for main current circuit
Front side
Degree of protection (IP)
IP20
Integrated earth fault protection
No
Overload release current setting
200 - 250A
Number of poles
3
Adjustment range undelayed short-circuit release
1500 - 2500A
Type of electrical connection of main circuit
Screw connection
Motor drive optional
Yes
Motor drive integrated
No
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
No
Type of control element
Rocker lever
Complete device with protection unit
Yes
Rated voltage
440 - 440V
Warehouse states
Zagreb:
0 pcs
Zadar:
0 pcs
Related products
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.

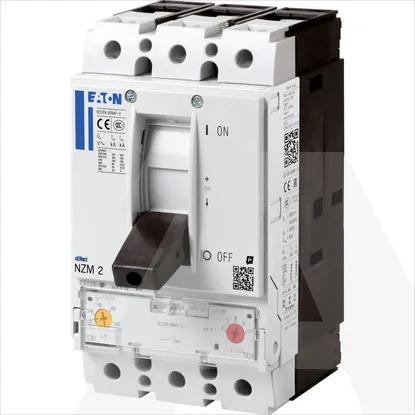

NZMB2-A250
Details
- Low-voltage industrial components
- Power circuit-breaker for trafo/generator/installation protection
- 1 KOM
- EATON
DetailsWarehouse statesTechnical specificationsRelated products
Technical specifications
Rated short-circuit breaking capacity lcu at 400 V, 50 Hz
25kA
Rated permanent current Iu
250A
Number of auxiliary contacts as normally closed contact
0
DIN rail (top hat rail) mounting optional
Adjustment range short-term delayed short-circuit release
0 .. 0A
Device construction
Built-in device fixed built-in technique
Suitable for DIN rail (top hat rail) mounting
Number of auxiliary contacts as change-over contact
0
With switched-off indicator
Position of connection for main current circuit
Front side
Degree of protection (IP)
IP20
Integrated earth fault protection
Overload release current setting
200 .. 250A
Number of poles
3
Adjustment range undelayed short-circuit release
1500 .. 2500A
Type of electrical connection of main circuit
Screw connection
Motor drive optional
Motor drive integrated
Number of auxiliary contacts as normally open contact
0
With integrated under voltage release
Type of control element
Rocker lever
Complete device with protection unit
Rated voltage
440 .. 440V
