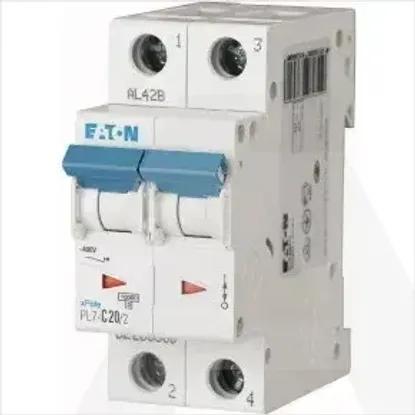

PL7-C20/2
Code: 1023927
In stock 15 pcs
Zagreb8 pcs
Zadar7 pcs
Sign in or create an account for lower prices and other benefits
Possible delivery within 24h
WSP*
12,86 €
Neto12,86 €
RP16,08 €
DetailsWarehouse statesTechnical specificationsFrom same serie
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
Technical specifications
Degree of protection (IP)
IP20
Voltage type
AC
Suitable for flush-mounted installation
No
Width in number of modular spacings
2
Built-in depth
70.5mm
Rated current
20A
Rated voltage
400V
Release characteristic
C
Ambient temperature during operating
-25 - 75°C
Connectable conductor cross section multi-wired
1 - 25mm²
Connectable conductor cross section solid-core
1 - 25mm²
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
2
Rated insulation voltage Ui
440V
Over voltage category
3
Number of poles (total)
2
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Additional equipment possible
Yes
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Frequency
50 - 60Hz
Concurrently switching neutral conductor
No
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
Warehouse states
Zagreb:
8 pcs
Zadar:
7 pcs
From same serie
*VPC is wholesale amount without VAT (tax on added value). For wholesale discounts, please register as business user.
PL7-C20/2
* Minimum quantity1 PCS
Total stock:
15 PCS
Zadar7 PCS
Zagreb8 PCS
Details
- Circuit breakers and fuses
- Miniature circuit breaker (MCB)
- 1 KOM
- EATON
DetailsWarehouse statesTechnical specificationsFrom same serie
Technical specifications
Degree of protection (IP)
IP20
Voltage type
AC
Suitable for flush-mounted installation
Width in number of modular spacings
2
Built-in depth
70.5mm
Rated current
20A
Rated voltage
400V
Release characteristic
C
Ambient temperature during operating
-25 .. 75°C
Connectable conductor cross section multi-wired
1 .. 25mm²
Connectable conductor cross section solid-core
1 .. 25mm²
Rated impulse withstand voltage Uimp
4kV
Number of protected poles
2
Rated insulation voltage Ui
440V
Over voltage category
3
Number of poles (total)
2
Current limiting class
3
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
0kA
Additional equipment possible
Pollution degree
2
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
10kA
Frequency
50 .. 60Hz
Concurrently switching neutral conductor
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V
0kA
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
10kA
From same serie
