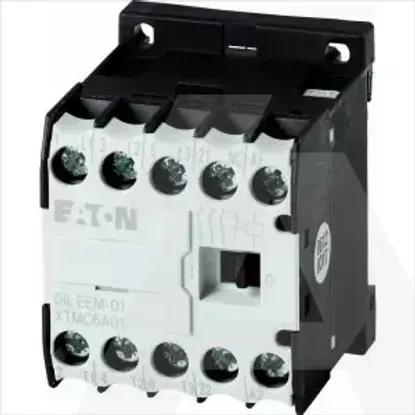

DILEEM-01-G(24VDC)

Rated control supply voltage Us at AC 60HZ

0 - 0V

Number of normally closed contacts as main contact

0

Rated control supply voltage Us at AC 50HZ

0 - 0V

Number of normally open contacts as main contact

3

Type of electrical connection of main circuit

Screw connection

Operating voltage at AC 50 Hz

24 - 690V

Voltage type for actuating

DC

Operating voltage at AC 60 Hz

24 - 690V

Rated control supply voltage Us at DC

24 - 24V

Rated operation current Ie at AC-1, 400 V

22A

Rated operation current Ie at AC-3, 400 V

6.6A

Modular version

No

Number of auxiliary contacts as normally closed contact

1

Number of auxiliary contacts as normally open contact

0

Depth

54mm

Rated operation current Ie at AC-4, 400 V

5A

Width

45mm

Height

58mm

Rated operation power at AC-3, 400 V

3kW

Rated operation power NEMA

2.2kW

Rated operation power at AC-4, 400 V

2.2kW
